Mooring Winch System
Product Details:
- Size Various Sizes Available
- Usage Industrial
- Color As Per Availability
- Power Source Electric
- Working Load 50-100 Kilograms (kg)
- Click to View more
X
Mooring Winch System Price And Quantity
- 50 Unit
Mooring Winch System Product Specifications
- 50-100 Kilograms (kg)
- As Per Availability
- Various Sizes Available
- Industrial
- Electric
Mooring Winch System Trade Information
- New Delhi
- Cash on Delivery (COD) Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Western Union Paypal Cash Against Delivery (CAD) Delivery Point (DP) Telegraphic Transfer (T/T) Days after Acceptance (DA) Cash in Advance (CID) Cheque Cash Advance (CA)
- 500 Unit Per Month
- 7-10 Days
- Yes
- Australia North America Eastern Europe Middle East Africa Western Europe Central America South America Asia
- ISO 9001-2000 certified organization
Product Description

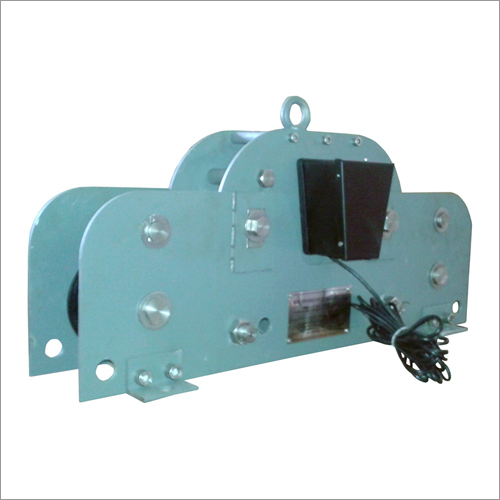

Line Riding Tension-meter
- Rugged, Compact & Accurate
- Tension Sensor
- Quick Installation
- High payout line speed capability
- Different models can take rope sizes from 12 to 60 mm Stainless Steel frame and fixtures. Rugged load cells of Stainless Steel, Stainless Steel fasteners, Hardened Alloy Steel pulley.
- Temperature compensated.
- Rope payout resolution + 15 cm
- Optimized for crane or marine vessel application.
- Swing Arm or permanent feet installation
Winch Master Display
Full featured instrument with exceptional performance and readability.
|
Display Type |
LCD (2 Line with backlight) |
|
Readability |
High |
|
Operation Temp. |
-20 Deg. C to +85 Deg. C |
|
Channels |
Eight (Accepts inputs from two winches) optional 4 winches |
|
Displays |
Payout and Speed of Payout, Tension in rope |
|
Configuration Security |
Yes |
The displays are made of high quality ABS and the from panel is sealed. Tactile switches ensure protection from corrosion.
Materials :
The frame, load sensing pin and hardware are made of SS (Stainless Steel). The sheaves are made of hardened alloy steel. The swing arms are made of MS (Mild Steel).
Specifications by Model and Options :
|
Line Rider Model |
Max Load(Kg) |
Payout Resolution(mm) |
Cable Diameter(mm) |
Weight(Kg) |
Swing Arm Option Max(Mtr.) |
|
010 ELRLT |
2150.000 |
60 |
10 |
13.000 |
SA-20 |
|
020 ELRLT |
8420.000 |
60 |
20 |
28.000 |
SA-20 |
|
030 ELRLT |
22830.000 |
60 |
30 |
45.500 |
SA-22 |
|
036 ELRLT |
32470.000 |
60 |
36 |
45.500 |
SA-22 |
|
040 ELRLT |
37920.000 |
100 |
40 |
45.500 |
SA-22 |
|
045 ELRLT |
43900.000 |
150 |
45 |
113.500 |
SA-25 |
|
048 ELRLT |
56360.000 |
150 |
48 |
113.500 |
SA-25 |
|
055 ELRLT |
70650.000 |
180 |
55 |
113.500 |
SA-25 |
|
060 ELRLT |
97660.000 |
180 |
60 |
259.000 |
SA-25 |
Note: In Swing Arm option the last digit indicates Maximum extension in meters. Viz: 22 means 2.2 Meters.
